GN 615 Ball spring plungers Steel
SKU : GN 615
THREADED BODY : Black-oxide steel, screwdriver slotted head. GN 615-K: hardened steel ball, steel spring with normal end-force. - GN 615-KS: hardened steel ball, steel spring with heavy end-force,
threaded body with two laser-engraved lines.
หมวดหมู่ :
บอลสปริง
รายละเอียดสินค้า

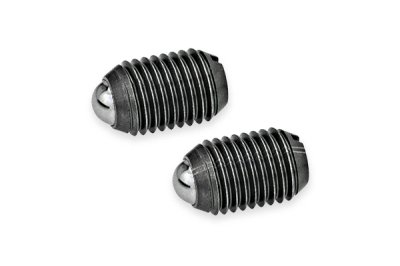

GN 615 Ball spring plungers Steel
THREADED BODY
Black-oxide steel, screwdriver slotted head.
STANDARD EXECUTIONS
- GN 615-K : hardened steel ball, steel spring with normal end-force.
- GN 615-KS : hardened steel ball, steel spring with heavy end-force,
threaded body with two laser-engraved lines.
SPECIAL EXECUTIONS ON REQUEST
- GN 615-K-MVK, GN 615-KS-MVK: thread locking by means of microencapsulated
red patch (see Technical data on page A-20). Working
temperature: from -40°C to +170°C. - GN 615-K-PFB, GN 615-KS-PFB: thread locking by means of
polyamide blue coating (see Technical data on page A-20). Working
temperature: from -50°C to +90°C.
| K | ||||||||
| Code | Description | d1 | d2 | l+0.1 | W | Spring preload [N] | Spring max load [N] | Weight (g) |
| GN.33091 | GN 615-M3-K | 1.5 | M3 | 7 | 0.4 | 3 | 4.5 | 1 |
| GN.33101 | GN 615-M4-K | 2.5 | M 4 | 9 | 0.8 | 6 | 14.5 | 1 |
| GN.33111 | GN 615-M5-K | 3 | M 5 | 12 | 0.9 | 8 | 14 | 2 |
| GN.33121 | GN 615-M6-K | 3.5 | M 6 | 14 | 1 | 11 | 18 | 2 |
| GN.33131 | GN 615-M8-K | 4.5 | M 8 | 16 | 1.5 | 18 | 31 | 5 |
| GN.33141 | GN 615-M10-K | 6 | M 10 | 19 | 2 | 24 | 45 | 8 |
| GN.33151 | GN 615-M12-K | 8 | M 12 | 22 | 2.5 | 26 | 49 | 11 |
| GN.33161 | GN 615-M16-K | 10 | M 16 | 24 | 3.5 | 41 | 86 | 23 |
| GN.33171 | GN 615-M20-K | 12 | M 20 | 30 | 4.5 | 56 | 111 | 45 |
| GN.33181 | GN 615-M24-K | 15 | M 24 | 34 | 5.5 | 81 | 151 | 74 |
| KS | ||||||||
| Code | Description | d1 | d2 | l+0.1 | W | Spring preload [N] | Spring max load [N] | Weight (g) |
| GN.33112 | GN 615-M5-KS | M 5 | 3 | 12 | 0.9 | 15 | 22 | 2 |
| GN.33122 | GN 615-M6-KS | M 6 | 3.5 | 14 | 1 | 19 | 28 | 2 |
| GN.33132 | GN 615-M8-KS | M 8 | 4.5 | 16 | 1.5 | 36 | 62 | 4 |
| GN.33145 | GN 615-M10-KS | M 10 | 6 | 19 | 2 | 57 | 104 | 7 |
| GN.33152 | GN 615-M12-KS | M 12 | 8 | 22 | 2.5 | 61 | 110 | 11 |
| GN.33165 | GN 615-M16-KS | M 16 | 10 | 24 | 3.5 | 68 | 142 | 24 |
| GN.33172 | GN 615-M20-KS | M 20 | 12 | 30 | 4.5 | 84 | 166 | 46 |
| GN.33182 | GN 615-M24-KS | M 24 | 15 | 34 | 5.5 | 127 | 237 | 75 |
